Application
Flame scanners are subjected to hot gases and impurities as a result of combustion. A quartz sealing union is installed between the flame scanner and the combustion chamber to act as a buffer and protect the flame scanner. Quartz sealing unions are compatible with UV and IR flame scanners manufactured by Fireye, Honeywell, Iris, Durag, Coen and more.
Products

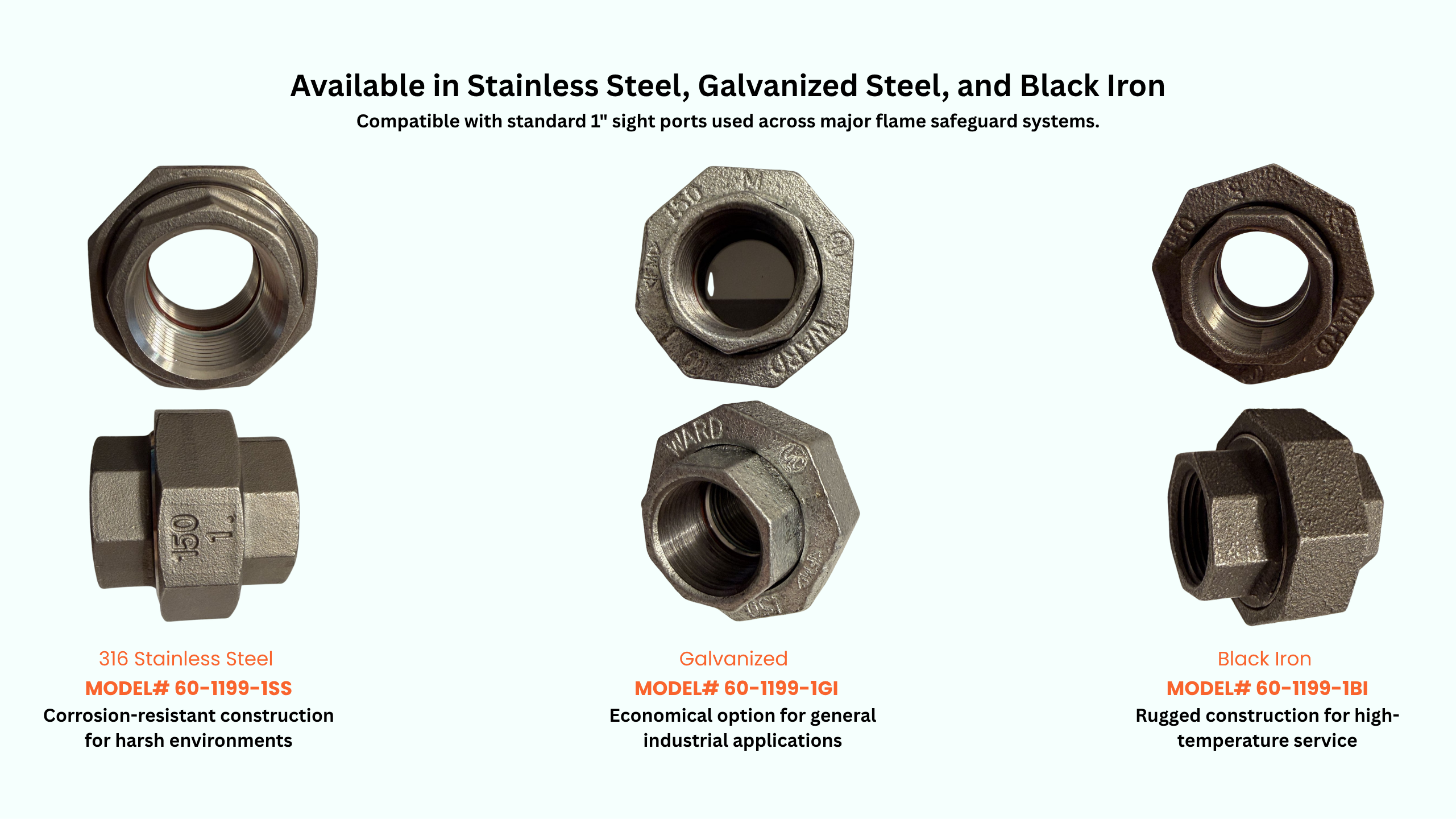

- Fiber Pro Mfg, LLC offers three varieties of quartz sealing unions:
- 316 Stainless Steel union, Part # 60-1199-1SS
- Galvanized union, Part # 60-1199-1GI (the Fireye original prior to their aluminum union)
- Black iron union, Part # 60-1199-1BI
- All are compatible with Fireye and other major brand flame scanners
Benefits
- Pipe size is 1″ npt
- Choice of body material to meet specific requirements
- Easily cleaned
- Easily replaced
- No special tools needed
Parts
- Quartz window, Part #92-48FP
- Retainer bushing for quartz window, Part #92-50FP
- O-Ring, Part #124-13FP
- Gasket , Part # 126-13FP
- Repair kit (1ea O-Ring, 1ea Gasket), Part #60-1199-FP-KIT
*Replacement parts also fit the Fireye quartz union 60-1199-1 supplied prior to the aluminum body sealing union.
